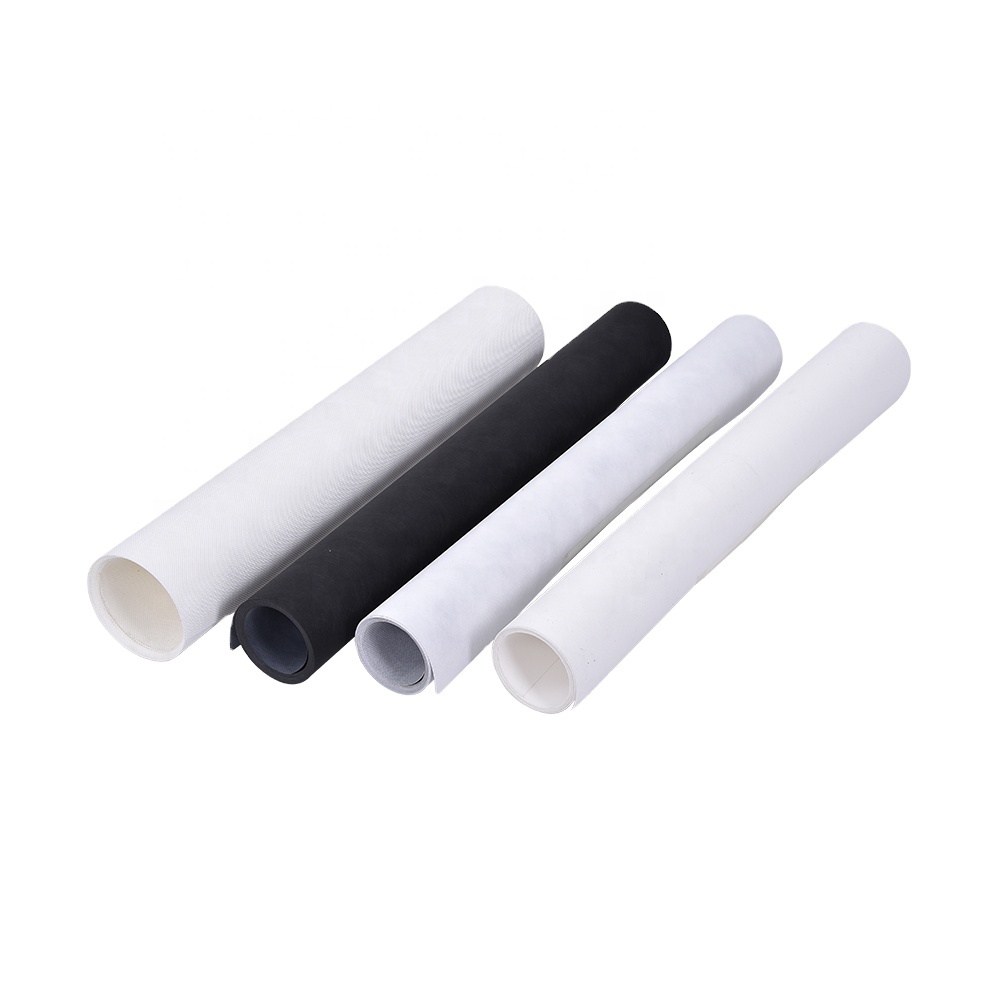

2024 Farrleey TZ/LR260 Polyester Anti Static HEPA Filter Sheet Material for Dust Removal

Specification

Material	Weight	Thickness	Air permeability	Temperature	Post-Processing	Filtration Efficiency	Notes
Polyester	260±12 g/m2	0.61mm	≥210 mm/s (△P=200Pa)	120 ℃	Aluminum Coating	M5 (EN779)	Spunbond
Polyester	260±12 g/m2	0.87 mm	≥230 mm/s (△P=200Pa)	120 ℃	Aluminum Coating & Corrugated	M5 (EN 779)	Spunbond
Polyester	260±12 g/m2	0.6 mm	≥200 mm/s (△P=200Pa)	120 ℃	Aluminum Coating	M5(EN 779)	Spunbond
Polyester	260±12 g/m2	0.61 mm	≥210 mm/s (△P=200Pa)	120 ℃	Flame Retardant	M5(EN 779)	Spunbond
Polyester	260±12 g/m2	0.61 mm	≥210 mm/s (△P=200Pa)	120 ℃	Water & Oil Resistant	M5(EN 779)	Spunbond
Polyester	260±12 g/m2	0.61 mm	≥230 mm/s (△P=200Pa)	120 ℃	/	M5(EN 779)	Spunbond
Polyester	260±12 g/m2	0.87 mm	≥50 mm/s(△P=200Pa)	120 ℃	Corrugated	M5(EN 779)	Spunbond
Polyester	260±12 g/m2	0.61 mm	≥50 mm/s (△P=200Pa	120 ℃	PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	260±12 g/m2	0.61 mm	≥50 mm/s (△P=200Pa)	120 ℃	Flame Retardant & PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	260±12 g/m2	0.61 mm	≥40 mm/s (△P=200Pa)	120 ℃	Aluminum Coating & PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	260±12 g/m2	0.6 mm	≥50 mm/s (△P=200Pa)	120 ℃	Aluminum Coating & PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	260±12 g/m2	0.61 mm	≥40 mm/s (△P=200Pa)	120 ℃	Aluminum Coating , Flame Retardant & PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	260±12 g/m2	0.6 mm	≥50 mm/s (△P=200Pa)	120 ℃	CF&FRT &PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	0.57±0.05 mm130±12 g/m2	0.35 mm	≥410 mm/s (△P=200Pa)	120 ℃	Water & Oil Resistant	M5(EN 779)	Spunbond
Polyester	130±12 g/m2	0.35mm	≥420 mm/s (△P=200Pa)	120 ℃	/	M5(EN 779)	Spunbond
Polyester	130±12 g/m2	0.7 mm	≥95 mm/s (△P=200Pa)	120 ℃	Corrugated & PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	170±12 g/m2	0.48 mm	≥80 mm/s (△P=200Pa)	120 ℃	PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	200±12 g/m2	0.5 mm	≥245 mm/s (△P=200Pa)	120 ℃	/	M5(EN 779)	Spunbond
Polyester	200±12 g/m2	0.5 mm	≥65 mm/s (△P=200Pa)	120 ℃	PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	220±12 g/m2	0.52 mm	≥240 mm/s (△P=200Pa)	120 ℃	/	M5(EN 779)	Spunbond
Polyester	240±12 g/m2	0.57 mm	≥235 mm/s (△P=200Pa)	120 ℃	Vein	M5(EN 779)	Spunbond
Polyester	300±12 g/m2	0.7 mm	≥200 mm/s (△P=200Pa)	120 ℃	/	M5(EN 779)	Spunbond
Polyester	130±12 g/m2	0.4 mm	≥620 mm/s (△P=200Pa)	120 ℃	CF	M5(EN 779)	Spunbond
Polyester	130±12 g/m2	0.68 mm	≥88 mm/s (△P=200Pa)	120 ℃	Corrugated & PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	130±12 g/m2	0.68 mm	≥83 mm/s (△P=200Pa)	120 ℃	FRT & CF & Corrugated & PTFE Membrane	F9(EN 779) E11-13(EN 1822	Spunbond
Polyester	130±12 g/m2	0.68 mm	≥83 mm/s (△P=200Pa)	120 ℃	FRT & Corrugated & PTFE Membrane	F9(EN 779) E10-H13(EN 1822)	Spunbond
Polyester	260±12 g/m2	0.7 mm	≥70 mm/s (△P=200Pa)	120 ℃	PTFE Membrane	M5(EN 779)	Spunbond
Polyester	300±12 g/m2	0.8 mm	≥330 mm/s (△P=200Pa)	120 ℃	/	M5(EN 779)	Spunbond
Polyester	255±12 g/m2	0.64 mm	≥140 mm/s (△P=200Pa)	120 ℃	/	M5(EN 779)	Spunbond
Polyester	255±12 g/m2	0.64 mm	≥145mm/s (△P=200Pa)	120 ℃	Water & Oil Resistant	M5(EN 779)	Spunbond

Advantages

Extreme efficiency. (95% , 0.3um, while other brands just can reach 70% to 80% for 0.3um)

Low resistance (Air permeability is 200L/㎡.s, while other brands just can reach 120 to 150L/㎡.s)

High tensile strength (CD＞450N/5CM; MD＞270N/5CM; Dry: 250/150N; Wet:
60N/5CM

High moisture resistance

High explosion-proof level

Excellent flame retardancy

Q1. What is your product range? A: Our products include filter material, dust collector cartridge filter, filter bag and other accessories.

Q2. What kinds of filter material do you have? A: There are three standard types: spunbond polyester, needle felt and sythetic media. Please contact us for more details.

Q3. Can you advise the filter precision of the filter media?

A: Yes, normal polyester is 5 micron, we can also offer you H13 grade media with PTFE membrane.

Q4. Is your product reached the food contact grade? A: Yes. We can offer you SGS certificate of raw material.

Q5. How about your delivery lead time? A: Generally, under MOQ quantity take 7 working days after receiving your advance payment. The specific delivery time depends on models and the quantity of your order.

Q6. What is your sample policy? A: We can supply sample, but the customers have to pay the sample cost and the courier cost at first. Sample cost can be refunded if you place formal orders in the future.
